Acoplamiento magnético con par limitado

1. El acoplamiento magnético de par limitado es un nuevo mecanismo de transmisión, que es un producto puramente mecánico y no tiene restricciones en el entorno de trabajo.
2. El acoplamiento magnético es más adecuado para entornos inflamables y explosivos, porque el acoplamiento magnético es un dispositivo de transmisión que transmite par a través de un campo magnético y no hay conexión mecánica entre el motor y el eje de carga.

Nuestra empresa puede personalizar diferentes modelos de acoplamientos magnéticos, ¡contáctenos si es necesario!

información
vídeo
descargar

Another name for torque limited magnetic coupling：

1.permanent magnet coupling

2.magnetic coupling

3.power transmission torque limited magnetic coupling

Product introduction:

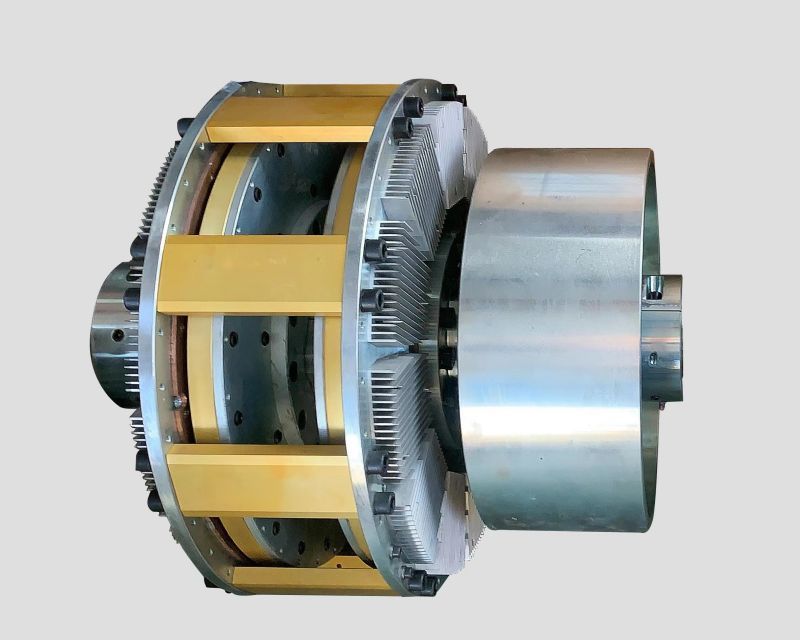

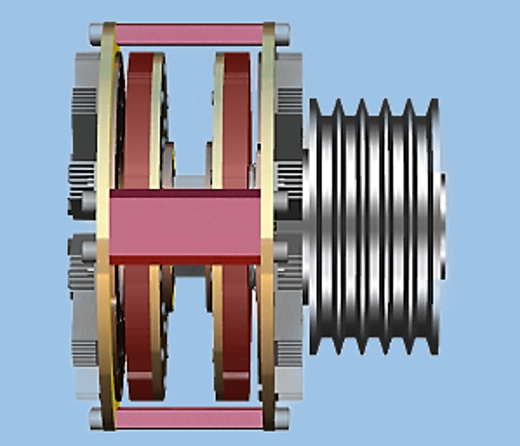

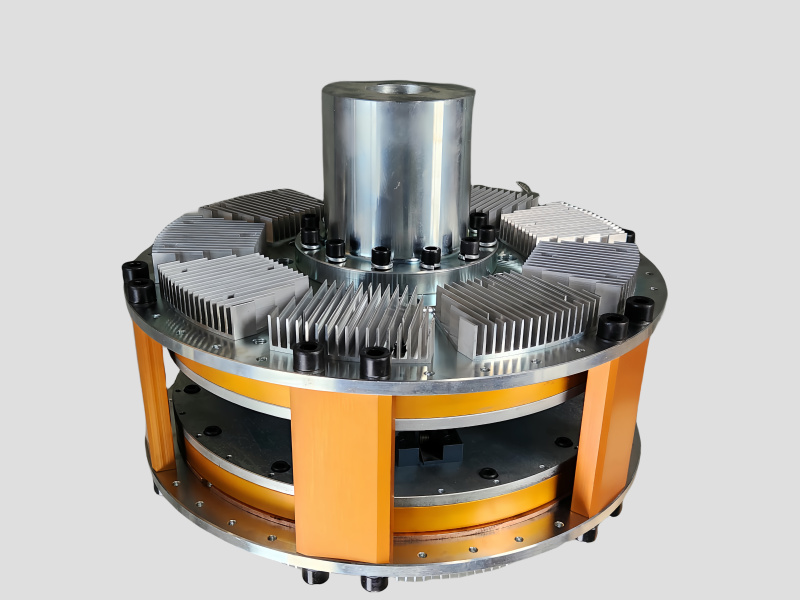

The permanent magnet coupling is also known as permanent magnet coupling.It is mainly composed of copper rotor、permanent magnet rotor and controller three parts.In general, the copper rotor is connected with the motor shaft, the permanent magnet rotor is connected with the shaft of the working machine, and there is an air gap (called an air gap) between the copper rotor and the permanent magnet rotor, and there is no mechanical connection to transmit torque.In this way, a soft magnetic connection is formed between the motor and the working machine, and the torque and speed of the working machine shaft are changed by adjusting the air gap.Due to the different air gap adjustment methods, the permanent magnet eddy current transmission device is divided into standard type, delay type, limited moment type, speed regulation type and other different types.

Product characteristics：

1. Energy-saving effect: 25%~66%

2. Maintenance workload is small, almost maintenance-free products and maintenance costs are very low.

3. The power transmission torque limited magnetic coupling allows a large installation alignment error (up to 5mm), greatly simplifying the installation and commissioning process.

4. The Torque limited magnetic coupling has an overload protection function, which improves the reliability of the entire system and completely eliminates the damage caused by the overload of the system.

5. The power transmission torque limited magnetic coupling improves the motor's starting capacity, reduces shock and vibration, and coordinates the load distribution of multi-machine drives.

6. The magnetic coupling has a long service life and a design life of 30 years. And it can extend the service life of the parts in the system.

7. The power transmission torque limited magnetic coupling is easy to achieve remote control and automatic control, and the process control is highly accurate.

8. The magnetic coupling is simple in structure and can adapt to a variety of harsh environments. It is very friendly to the environment and does not produce pollutants and harmonics. The coupling is small in size and easy to install

Product application scope：

The permanent magnetic coupling is mainly used in various types of fans, pumps, material conveyors, bucket elevators, ball mills, winches, crushers, agitators, stranding machines and other mechanical equipment.

permanent magnet coupling
